Available Now
Released: March 20
23

All prices quoted include GST





Model Features:
  • DCC sound versions available
  • Plastic (ABS) body
  • Blackened metal disc wheels (RP25-110)
  • Scale size metal knuckle couplers
  • Highly detailed underframe
  • Separately applied metal parts
  • Brass Horns
  • 6 Different liveries available
  • Metal & plastic handrails & brake piping
  • Highly detailed bogies with separately applied parts
  • Factory painted & decorated.
  • 18" Recommended minimum radius
  • Will operate on code 70, 83 & 100 rail
  • Detailed cab with painted driver figures
  • Metal etched mirrors & windscreen wipers
  • See-through metal etched grilles
  • Operating LED headlights, number box lights, marker lights & ditch lights (where applicable)  with manual override switch
  • 5-Pole skew wound motor with twin brass flywheels.
  • All wheel drive and electrical pickup
  • Separately applied air hoses & MU cables
  • DCC Ready with 21 pin socket (on standard DC models)
  • Heavy die-cast chassis
  • Most accurate & highly detailed BL Class available on the market
Sound Features:
  • ESU LokSound 5 21 pin decoder
  • Auscision Vandersound speaker enclosure with twin speakers
  • Prototypical sound files
  • EMD 16-645E3B engine (start-up, shutdown, idle & running)
  • Dynamic brakes
  • Leslie Super Typhoon S5T air horns (short & long)
  • Brake squealing
  • Coupler (release & crash)
  • Handbrake (applied & released)

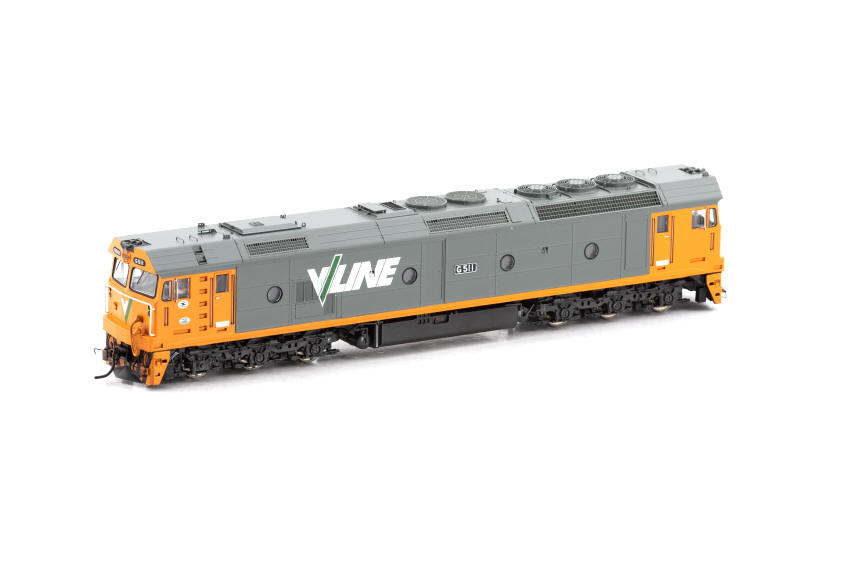

V/Line - 1980's



This version has the following features:  Recessed foot holes at both ends, single wipers, no ditch lights,
coupler lights, MU hose on nose at both ends, impact resistant windscreens fitted at both ends & no equipment locker.

G-1

G511 V/Line Orange/Grey 1980's

$335.00 Sold Out

G-1s G511 V/Line Orange/Grey 1980's - DCC Sound Equipped $465.00 Sold Out


This version has the following features:  Recessed foot holes at both ends, single wipers, no ditch lights,
coupler lights, MU hose on nose at both ends, impact resistant windscreens fitted at both ends & no equipment locker.

G-2  G512 V/Line Orange/Grey 1980's $335.00 Sold Out

G-2s G512 V/Line Orange/Grey 1980's - DCC Sound Equipped $465.00 Sold Out


V/Line - 1990's

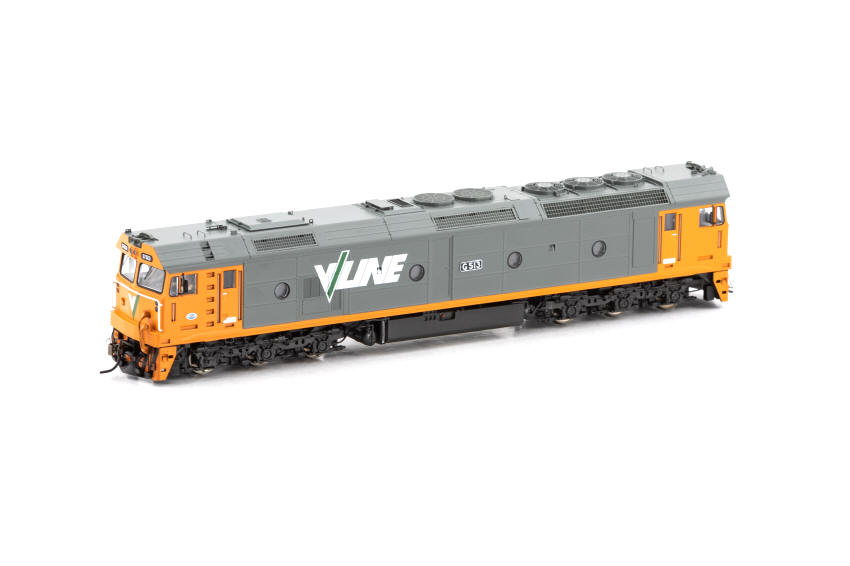

This version has the following features: Recessed foot holes at both ends, single wipers, ditch lights at both ends,
coupler lights, MU hose on nose at both ends, impact resistant windscreens fitted at both ends & no equipment locker.

G-3 G513 V/Line Orange/Grey 1990's $335.00 Sold Out

G-3s G513 V/Line Orange/Grey 1990's - DCC Sound Equipped $465.00 Sold Out

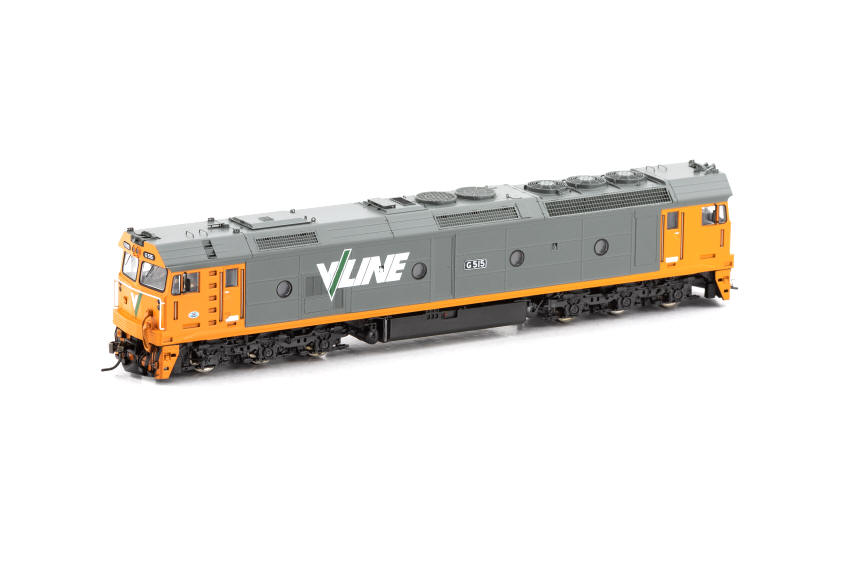

This version has the following features: Recessed foot holes at both ends, single wipers, ditch lights at both ends,
coupler lights, MU hose on nose at both ends, impact resistant windscreens fitted at both ends & no equipment locker.

G-4  G515 V/Line Orange/Grey 1990's  $335.00 Sold Out

G-4s G515 V/Line Orange/Grey 1990's  - DCC Sound Equipped $465.00 Sold Out


Freight Victoria



This version has the following features: Recessed foot holes at both ends, single wipers, ditch lights at both ends,
coupler lights, MU hose on nose at both ends, impact resistant windscreens fitted at both ends & no equipment locker.

G-5 G515 Freight Victoria Green/Yellow $335.00

G-5s G515 Freight Victoria Green/Yellow  - DCC Sound Equipped $465.00 Sold Out


Freight Australia



This version has the following features: Recessed foot holes at both ends, single wipers, ditch lights at both ends,
coupler lights, MU hose on nose at both ends, impact resistant windscreens fitted at both ends & no equipment locker.

G-6 G511 Freight Australia Green/Yellow $335.00 Sold Out

G-6s G511 Freight Australia Green/Yellow - DCC Sound Equipped $465.00 Sold Out

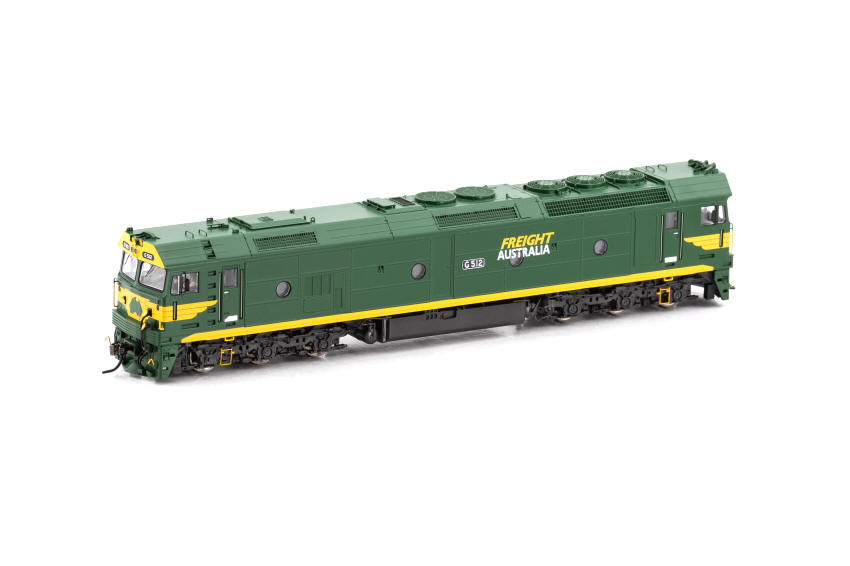

This version has the following features: Recessed foot holes at both ends, single wipers, ditch lights at both ends,
coupler lights, MU hose on nose at both ends, impact resistant windscreens fitted at both ends & no equipment locker.

G-7  G512 Freight Australia Green/Yellow  $335.00

G-7s G512 Freight Australia Green/Yellow  - DCC Sound Equipped $465.00 Sold Out


SCT



G513 will have the following features: Recessed foot holes at both ends, single wipers, ditch lights at both ends, coupler lights,
MU hose on nose at both ends, impact resistant windscreens fitted at both ends, horseshoes at both ends & no equipment locker.

G-8 G513 SCT Red/White/Black $335.00 Sold Out

G-8s G513 SCT Red/White/Black - DCC Sound Equipped $465.00

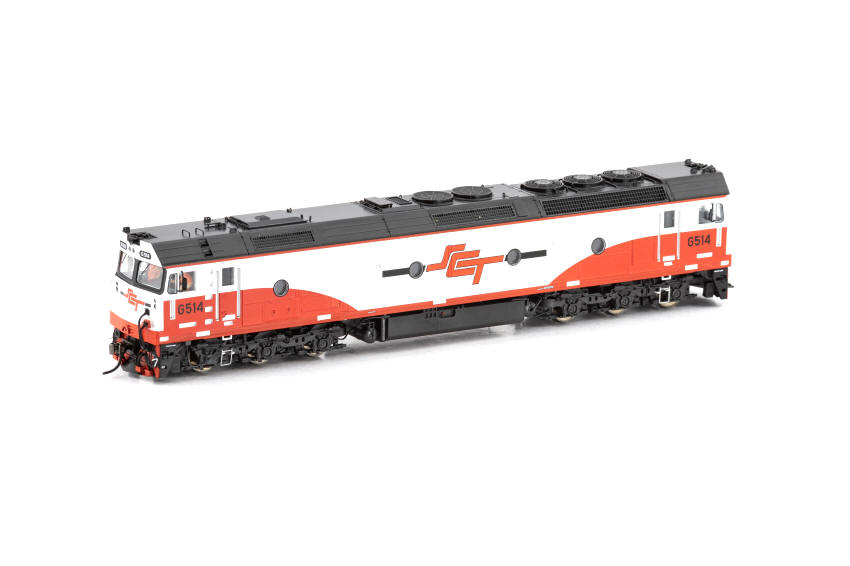

G514 will have the following features: Recessed foot holes at number 1 end, single wipers, ditch lights at both ends, coupler lights,
MU hose on nose at both ends, impact resistant windscreens fitted at both ends, horseshoes at both ends & equipment locker.

G-9  G514 SCT Red/White/Black  $335.00 Sold Out

G-9s G514 SCT Red/White/Black  - DCC Sound Equipped $465.00


SSR

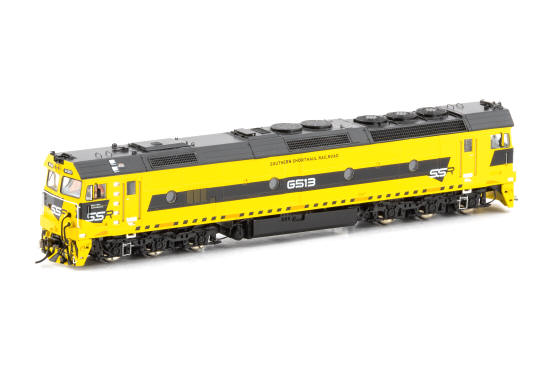

G513 will have the following features: Recessed foot holes at both ends, single wipers, ditch lights at both ends, coupler lights,
MU hose on nose at both ends, impact resistant windscreens fitted at both ends, horseshoes at both ends & no equipment locker.

G-10 G513 SSR (Mike Moy) Yellow/Black $335.00 Sold Out

G-10s G513 SSR (Mike Moy) Yellow/Black - DCC Sound Equipped $465.00 Sold Out


G514 will have the following features: Recessed foot holes at number 1 end, single wipers, ditch lights at both ends, coupler lights,
MU hose on nose at both ends, impact resistant windscreens fitted at both ends, horseshoes at both ends & equipment locker.

G-11  G514 SSR (Graham Cotterall) Yellow/Black   $335.00 Sold Out

G-11s G514 SSR (Graham Cotterall) Yellow/Black   - DCC Sound Equipped $465.00 Sold Out


CFCLA



This version has the following features: Recessed foot holes at both ends, single wipers, ditch lights at both ends, coupler lights,
MU hose on nose at both ends, impact resistant windscreens fitted at both ends, horseshoes at both ends & no equipment locker.

G-12 G512 CFCLA Blue/Yellow/Silver $335.00

G-12s G512 CFCLA Blue/Yellow/Silver - DCC Sound Equipped $465.00


This version has the following features: Recessed foot holes at both ends, single wipers, ditch lights at both ends, coupler lights,
MU hose on nose at both ends, impact resistant windscreens fitted at both ends, horseshoes at both ends & no equipment locker.

G-13  G515 CFCLA Blue/Yellow/Silver  $335.00

G-13s G515 CFCLA Blue/Yellow/Silver  - DCC Sound Equipped $465.00 Sold Out


Watco Australia

This version has the following features: Recessed foot holes at both ends, single wipers, ditch lights at both ends,
coupler lights, No MU hose on nose, impact resistant windscreens fitted at both ends & no equipment locker.

G-14 G511 Watco Australia Yellow/Black $335.00 Sold Out

G-14s G511 Watco Australia Yellow/Black - DCC Sound Equipped $465.00

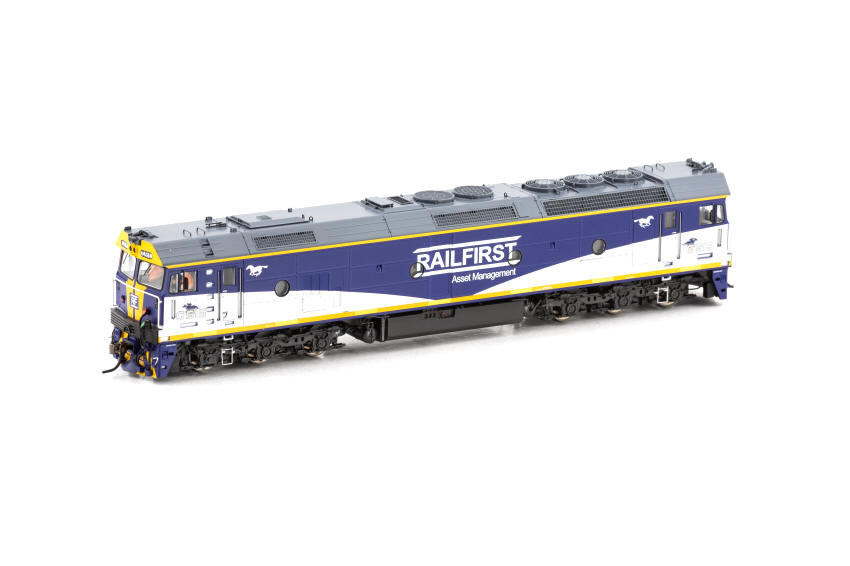

RailFirst



This version has the following features: Recessed foot holes at both ends, single wipers, ditch lights at both ends, coupler lights,
MU hose on nose at both ends, impact resistant windscreens fitted at both ends, horseshoes at both ends & no equipment locker.

G-15 G515 RailFirst Blue/Yellow/Silver $335.00 Sold Out

G-15s G515 RailFirst Blue/Yellow/Silver - DCC Sound Equipped $465.00


G Class Locomotive DCC Sound Upgrade Kit

DCC Sound upgrade kit for Auscision G Class Locomotive.
Kit includes 1 x ESU LokSound 58429 decoder pre-programmed with G Class sound file and Auscision twin speakers.

Please note: Decoder mapping designed to work only with Auscision G Class Locomotive.

Click on the below image to view DCC Sound page.


DCC Operating Information

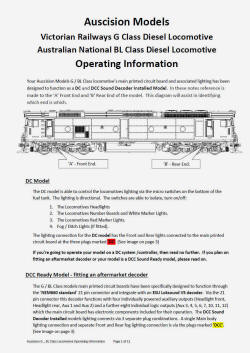

Click on the below image to download the complete DCC guide for
our ESU Sound Equipped HO Scale Series 1 G Class Locomotive


(Series 1) G Class Locomotive – Prototype Photos











Artwork & photographs shown for illustration purpose only. Details, body versions, colours, livery, number
fonts & some finer details may differ on the production models. Auscision Models takes care to
reproduce models as accurately as possible and will always refer to the prototype for model accuracy.
